Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Meter Tester 0.28 Inch Dual LED Display Panel with Connect Wires

Item Description: Digital Voltmeter Ammeter

Dual LED Display Panel: Featuring a 0.28-inch dual LED display panel, this product offers clear and easy reading of voltage and current measurements, enhancing visibility and usability.

Wide Voltage and Current Range: With a voltage range of up to 100V and a current range of up to 10A, this voltmeter ammeter is suitable for a broad range of applications, providing versatility and flexibility.

Accurate Measurements: Designed for precision, the digital voltmeter ammeter delivers accurate measurements of voltage and current, ensuring reliable readings every time.

Easy Installation: The product includes connecting wires, facilitating easy installation and use without the need for additional tools or equipment, saving time and effort.

Specifications:

• Working Voltage: DC 4 - 30V
• Working Current: ≤20mA
• Voltage Measuring Range: DC 0 - 100V
• Current Measuring Range: DC 0 - 10A
• Voltage Resolution: 0.1V
• Current Resolution: 0.01A
• Measure Accuracy: 1% (±1 digit)
• Display: 0.28-inch digital tube, Two-color blue and red
• Refresh Rate: about 300mS/times

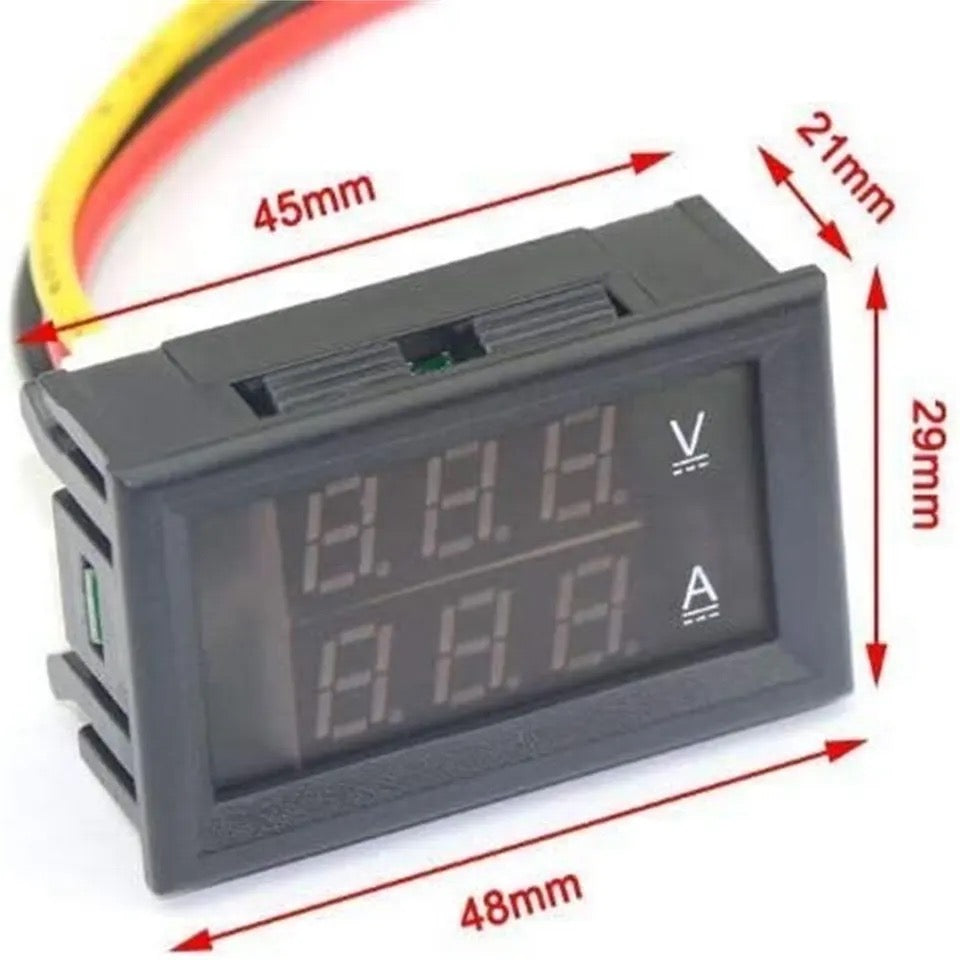

• Dimensions: 48mm x 29mm x 21mm
• Operating Temperature: -10°C to +65°C

Note: Ensure that the maximum input voltage does not exceed 30V to prevent damage to the meter.
